Blind Rivet Stud Partial Hexagon / Half Hex Body for Secure Industrial Fastening
Blind Rivet Stud Partial Hexagon / Half Hex Body fasteners are engineered to provide strong threaded connections in applications where access is available from only one side of the workpiece. Compared with traditional welding studs or standard threaded fasteners, this type of blind rivet stud offers improved installation efficiency, reliable anti-rotation performance, and reduced assembly time.
The partial hexagon body design is specially developed to increase grip strength and torque resistance after installation. During the riveting process, the hexagonal section locks firmly into the installation hole, minimizing movement and preventing loosening under vibration or repeated mechanical stress.
These rivet studs are widely used in industries including automotive manufacturing, sheet metal fabrication, rail transportation, electrical cabinets, HVAC systems, construction machinery, and industrial equipment assembly.
What Is a Blind Rivet Stud Partial Hexagon?

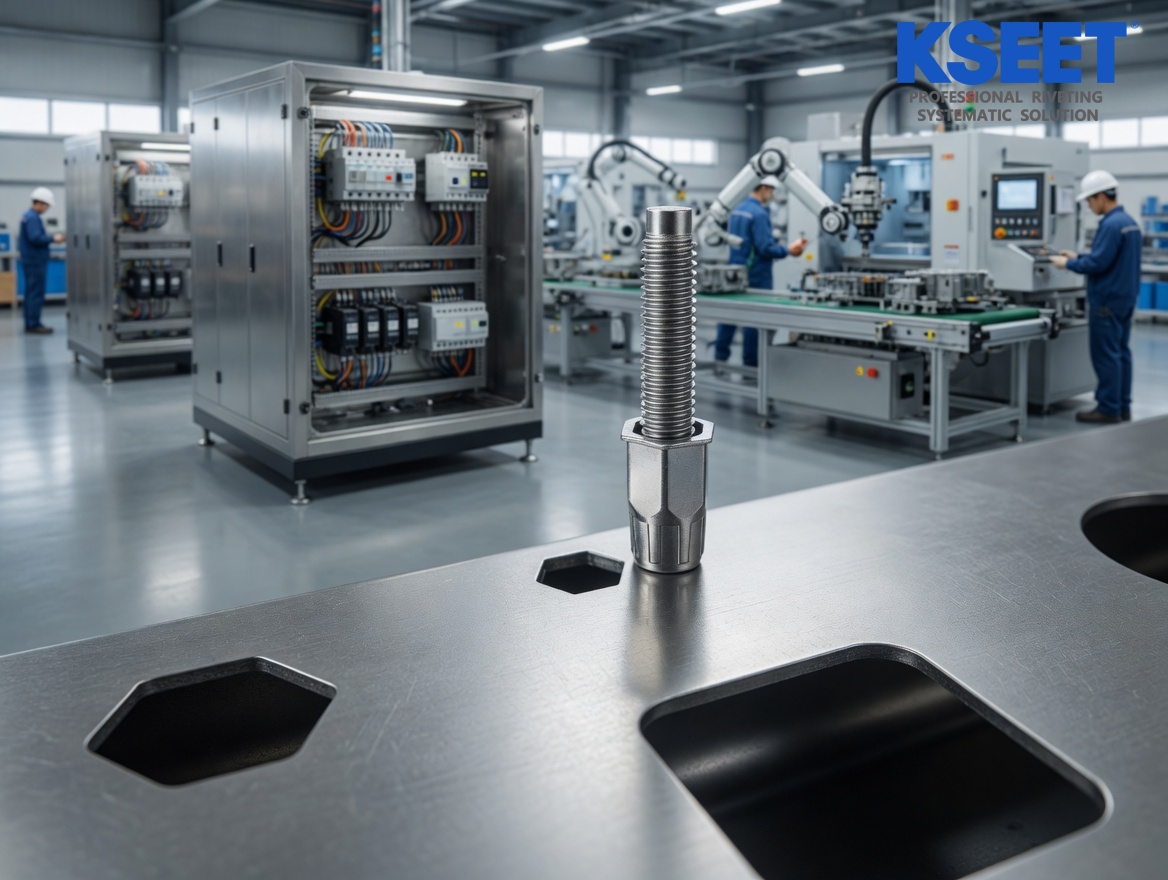

A Blind Rivet Stud Partial Hexagon is a threaded fastener designed for blind-side installation. The body combines a cylindrical section with a partial hexagonal profile, allowing the fastener to achieve higher anti-rotation capability compared with round-body rivet studs.
After installation, the threaded stud remains permanently fixed to the base material, creating a durable threaded mounting point for additional components or assemblies.
The partial hexagon structure is particularly suitable for applications where high torque loads or vibration resistance are required.
Key Structural Features
- Partial hexagonal body design
- Excellent anti-spin performance
- Blind-side installation capability
- Permanent threaded connection
- Compatible with thin sheet materials

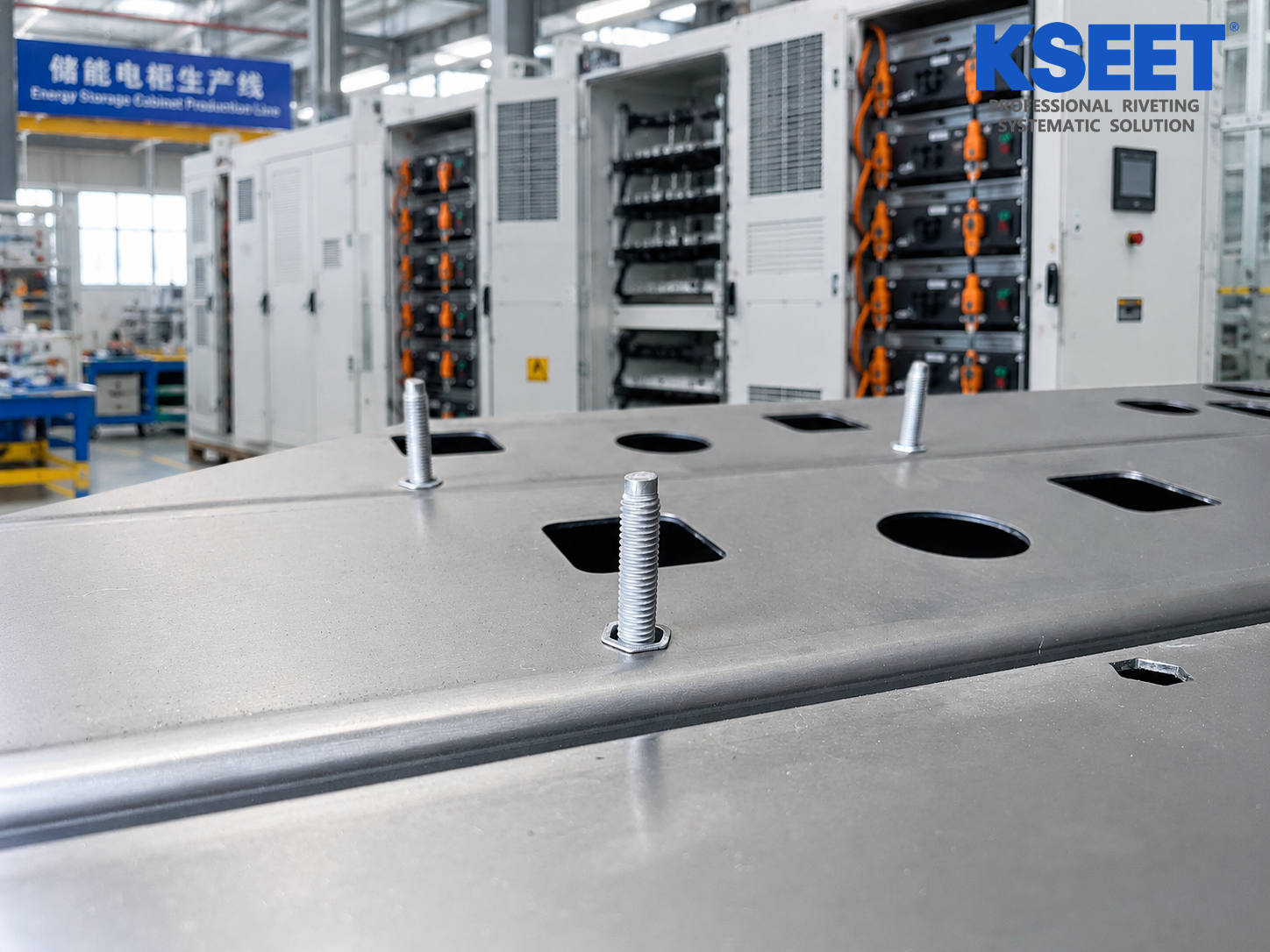

Hex Body Blind Rivet Studs
Advantages of Partial Hexagon Blind Rivet Studs
Enhanced Torque Resistance
The half hex body design improves grip inside the mounting hole. This prevents rotation during assembly or maintenance operations, especially when tightening bolts or nuts onto the threaded stud.
Fast and Efficient Installation
Blind rivet studs can be installed quickly using pneumatic, or battery-powered rivet stud tools. Only one-side access is required, which significantly improves productivity in enclosed structures.
Reduced Welding Requirements
Compared with welded studs, blind rivet studs eliminate heat distortion, surface damage, and additional finishing processes. This makes them suitable for coated panels, stainless steel sheets, and lightweight materials.
Strong Vibration Resistance
The mechanical locking structure provides stable fastening performance in dynamic environments such as transportation equipment, industrial machinery, and electrical systems.
Versatile Material Options
Blind Rivet Stud Partial Hexagon fasteners are available in multiple material grades:

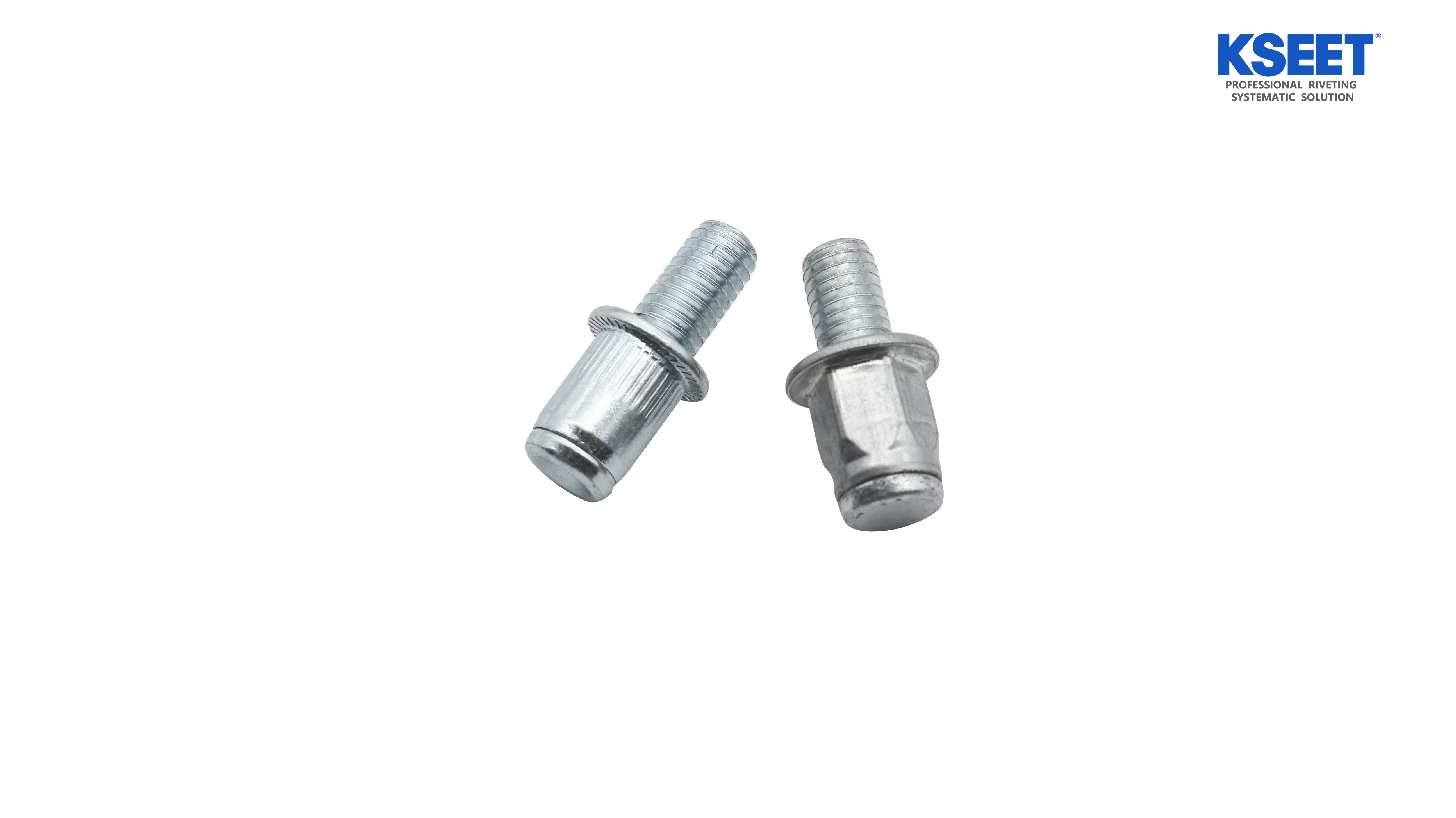

- Carbon Steel Zinc Plated
- Stainless Steel A2 / A4
Different coatings and surface treatments can be provided according to corrosion resistance requirements.
Common Industrial Applications
Automotive Industry
Used for mounting brackets, electrical modules, interior components, battery systems, and body panels where blind installation is necessary.
Electrical Cabinets and Enclosures
Provides secure threaded fixing points inside switch cabinets, control boxes, and power distribution systems.
Sheet Metal Fabrication
Ideal for thin metal structures where welding is difficult or not recommended.
Rail and Transportation Equipment
Used in rail vehicle assemblies requiring strong anti-vibration fastening performance.
HVAC and Ventilation Systems
Blind rivet studs simplify installation in duct systems and enclosed metal structures.
Installation Process
The installation process for Blind Rivet Stud Partial Hexagon fasteners is straightforward and highly efficient.
Step 1: Prepare the Mounting Hole
The base material should be drilled or punched according to the recommended hole diameter.
Step 2: Insert the Rivet Stud
Place the rivet stud into the prepared hole from the accessible side.

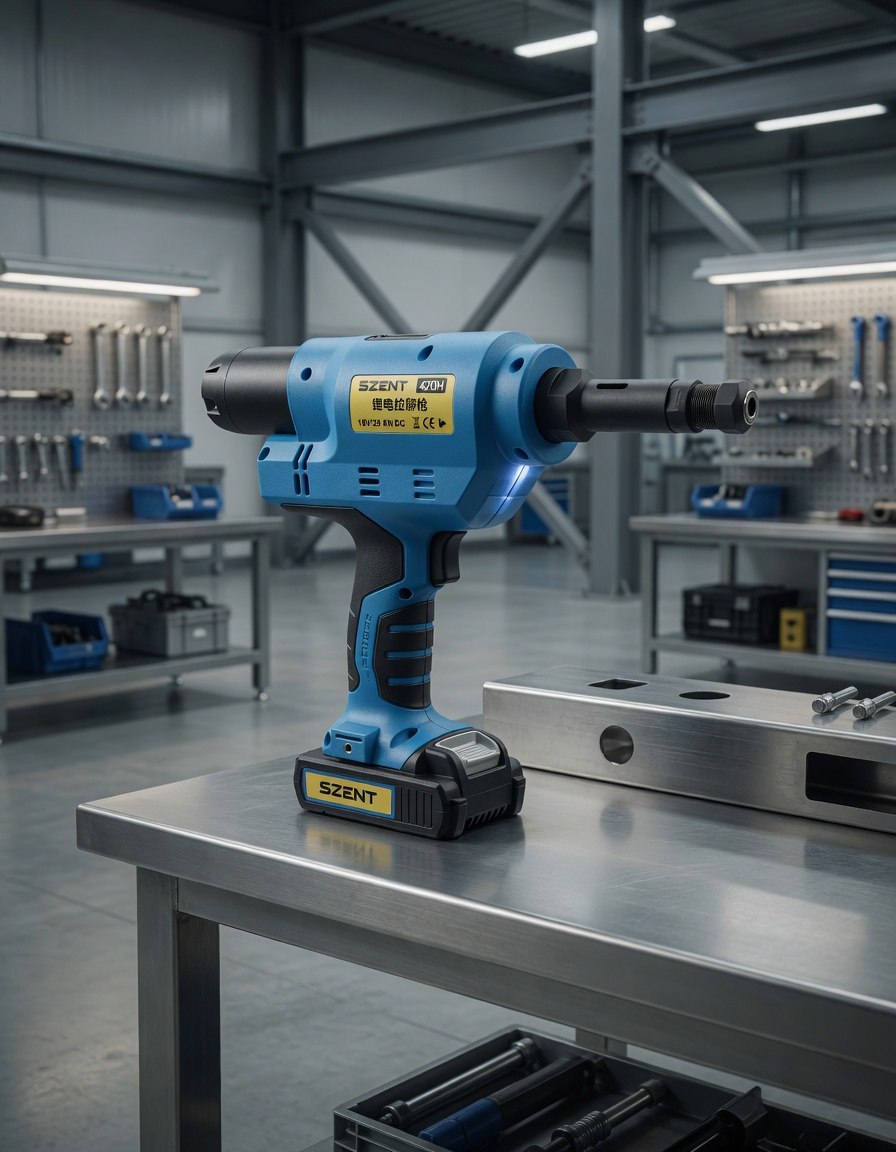

Step 3: Use Rivet Stud Installation Tool
A compatible pneumatic or hydraulic rivet stud tool pulls the mandrel and deforms the backside of the fastener.
Step 4: Complete Permanent Fixing
The stud locks tightly into the material, forming a permanent threaded attachment point.
This process ensures stable installation while reducing labor costs and assembly time.
Why Choose Partial Hexagon Over Round Body Designs?
Compared with standard round-body blind rivet studs, partial hexagon designs provide improved mechanical locking performance.
Comparison Benefits
| Feature | Partial Hexagon | Round Body |
|---|---|---|
| Anti-Rotation Performance | Excellent | Standard |
| Torque Resistance | High | Medium |
| Vibration Resistance | Strong | Moderate |
| Installation Stability | Superior | Good |
For demanding industrial applications, the half hex body structure delivers higher reliability and longer service life.
Compatible Installation Tools
Blind Rivet Stud Partial Hexagon fasteners are compatible with:
- Pneumatic Rivet Stud Tools
- Battery-Powered Rivet Tools
Conclusion
Blind Rivet Stud Partial Hexagon / Half Hex Body fasteners provide an efficient and reliable solution for industrial blind-side fastening applications. With excellent anti-rotation capability, strong vibration resistance, and easy installation, they are widely used across automotive, sheet metal, electrical, and heavy equipment industries.
Compared with traditional fastening methods, partial hexagon blind rivet studs improve assembly efficiency while reducing maintenance and production costs. Their compatibility with automated riveting systems also makes them suitable for modern manufacturing environments requiring high productivity and consistent fastening quality.
For applications requiring secure threaded connections in thin materials or enclosed structures, Blind Rivet Stud Partial Hexagon fasteners offer a durable and professional fastening solution.
联系我们
Request Free Samples Today
Looking for reliable Blind Rivet Stud Partial Hexagon fasteners for your industrial projects?
KSEET provides high-quality rivet studs with stable performance, customized solutions, and professional technical support for global customers.
- Free sample support
- OEM & ODM manufacturing
- Fast global delivery
- Professional fastening solutions
Contact our engineering sales team today for technical specifications, quotations, and sample requests.
Engineer-Style Ending
From an engineering and assembly efficiency perspective, Partial Hexagon Blind Rivet Studs provide a practical balance between installation speed, torque resistance, and structural reliability. Their anti-rotation geometry significantly improves fastening stability in vibration-sensitive applications while maintaining compatibility with automated industrial production systems. Proper hole tolerance control and matching installation parameters are recommended to achieve optimal clamp performance and long-term joint integrity.
